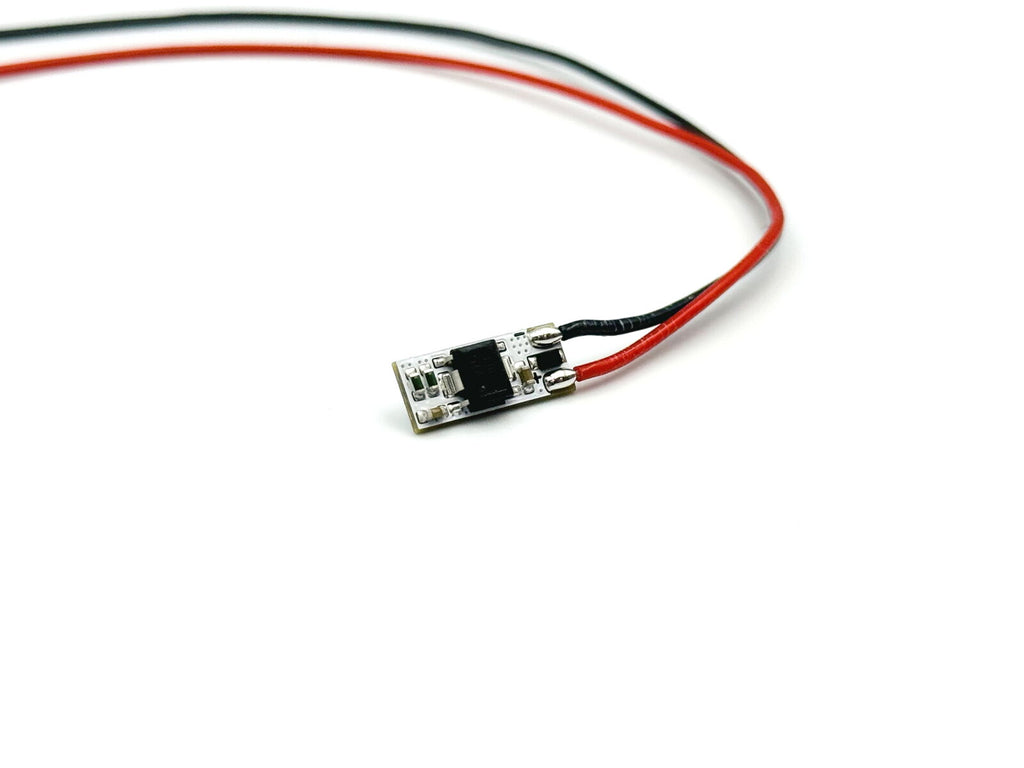

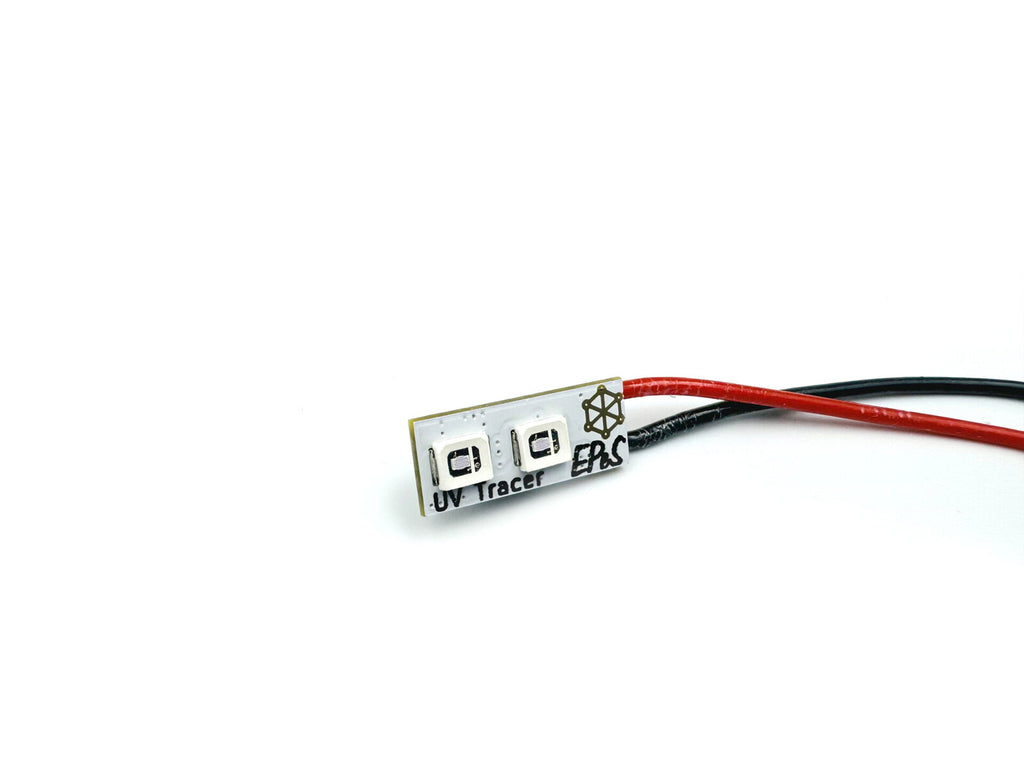

The EPES Universal UV Tracer Module is designed for DIY tracer hop-up chamber builds. It allows you to add tracer functionality directly inside the hop-up area, giving your airsoft gun a clean internal tracer setup without needing a separate external tracer unit.
The module can be connected in parallel with the motor or directly to compatible soldering points on FCUs that support this feature, such as the Perun Hybrid or JeffTron Leviathan. It has been developed in cooperation with Perun Airsoft, making it a practical choice for custom AEG builds and advanced upgrade projects.
With a working voltage range of 7–17 V and two UV diodes, the module is suitable for common airsoft battery setups and provides UV illumination for tracer BBs as they pass through the hop-up chamber.
Key features
- Universal UV tracer module for DIY tracer hop-up chamber builds
- Designed to be installed inside the hop-up area
- Clean internal alternative to external tracer units
- Can be connected in parallel with the motor
- Compatible with suitable FCU soldering points
- Suitable for example with Perun Hybrid and JeffTron Leviathan
- Developed in cooperation with Perun Airsoft
- Working voltage: 7–17 V
- Equipped with 2 UV diodes
Technical specifications
- Type: UV tracer module
- Application: DIY tracer hop-up chambers
- Working voltage: 7–17 V
- UV diodes: 2 pcs
Please note
Installation requires soldering and a compatible hop-up chamber or custom setup. Make sure the module is connected correctly and that all wiring is properly insulated before use.
