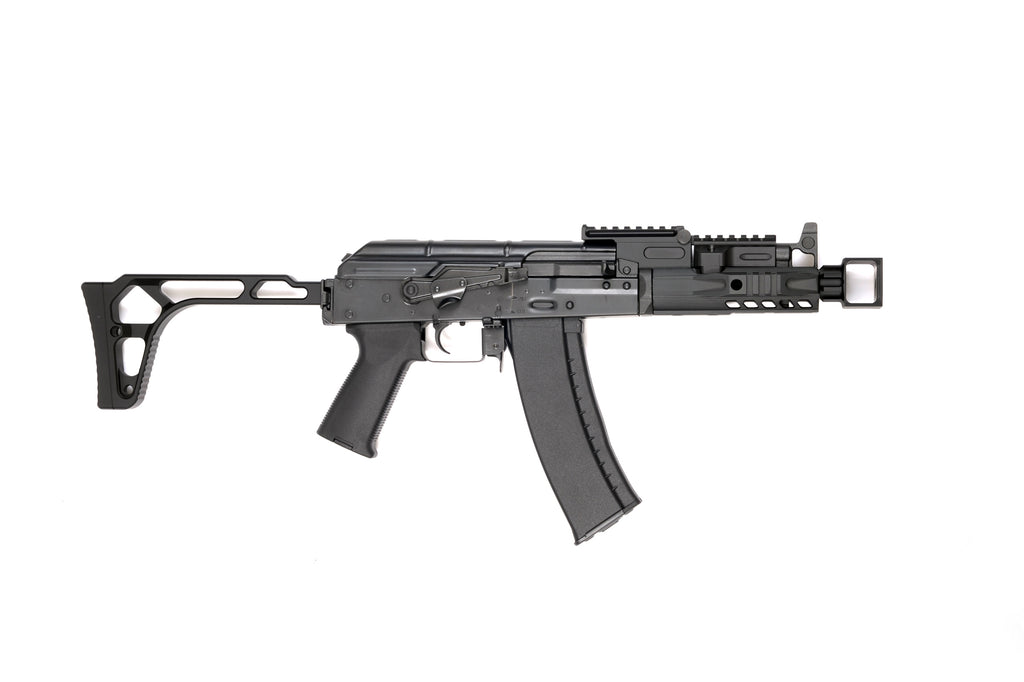

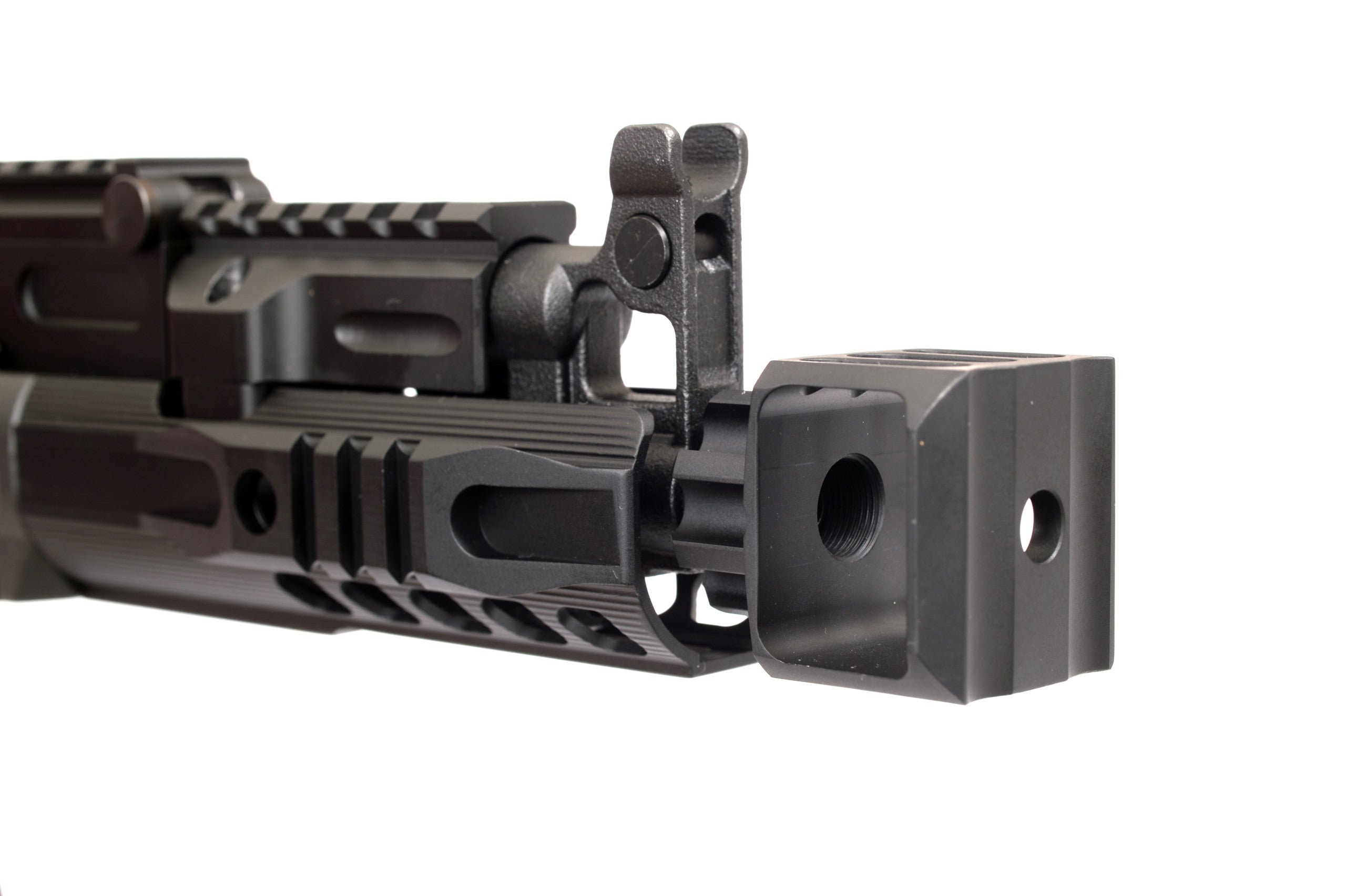

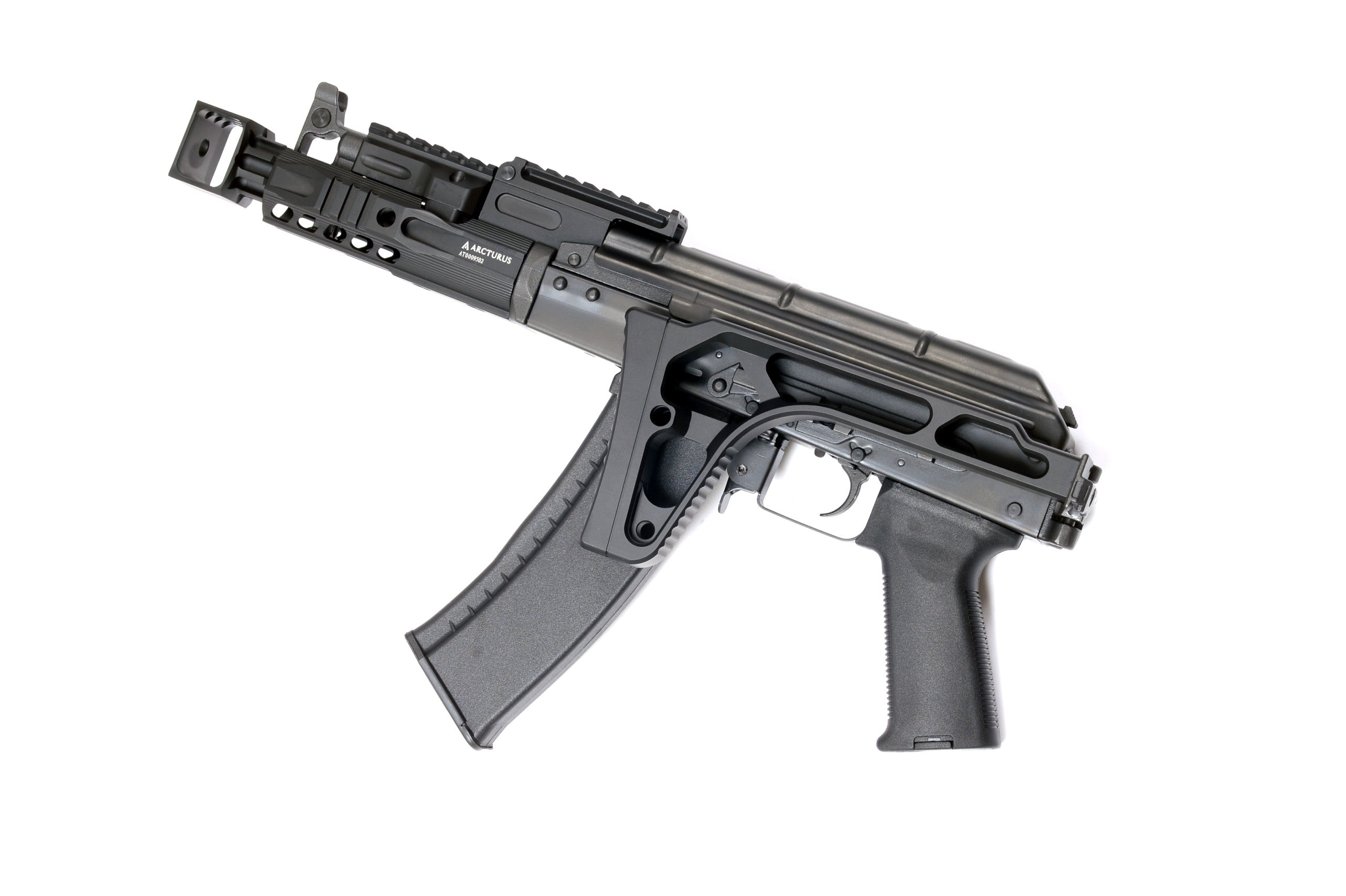

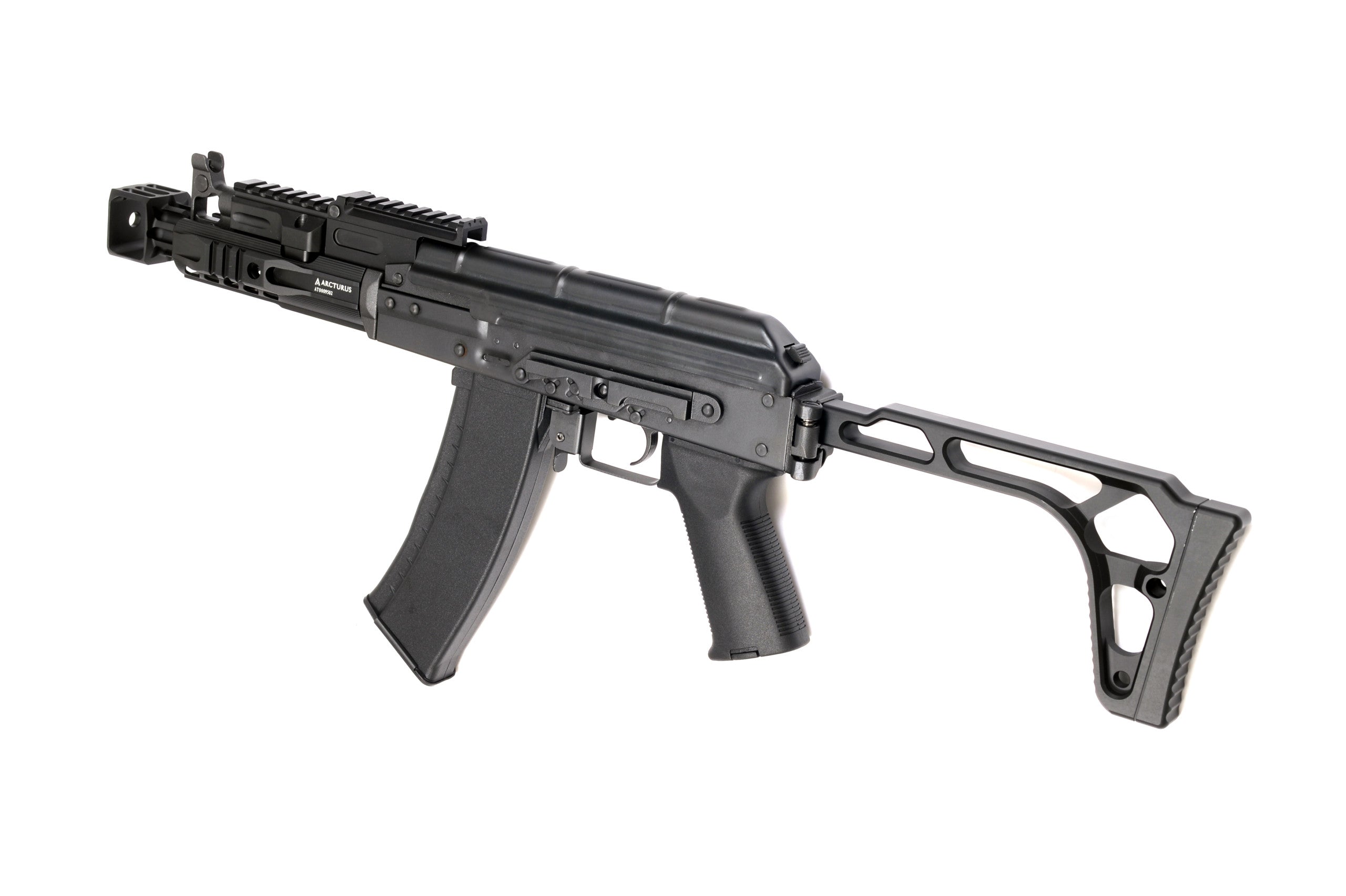

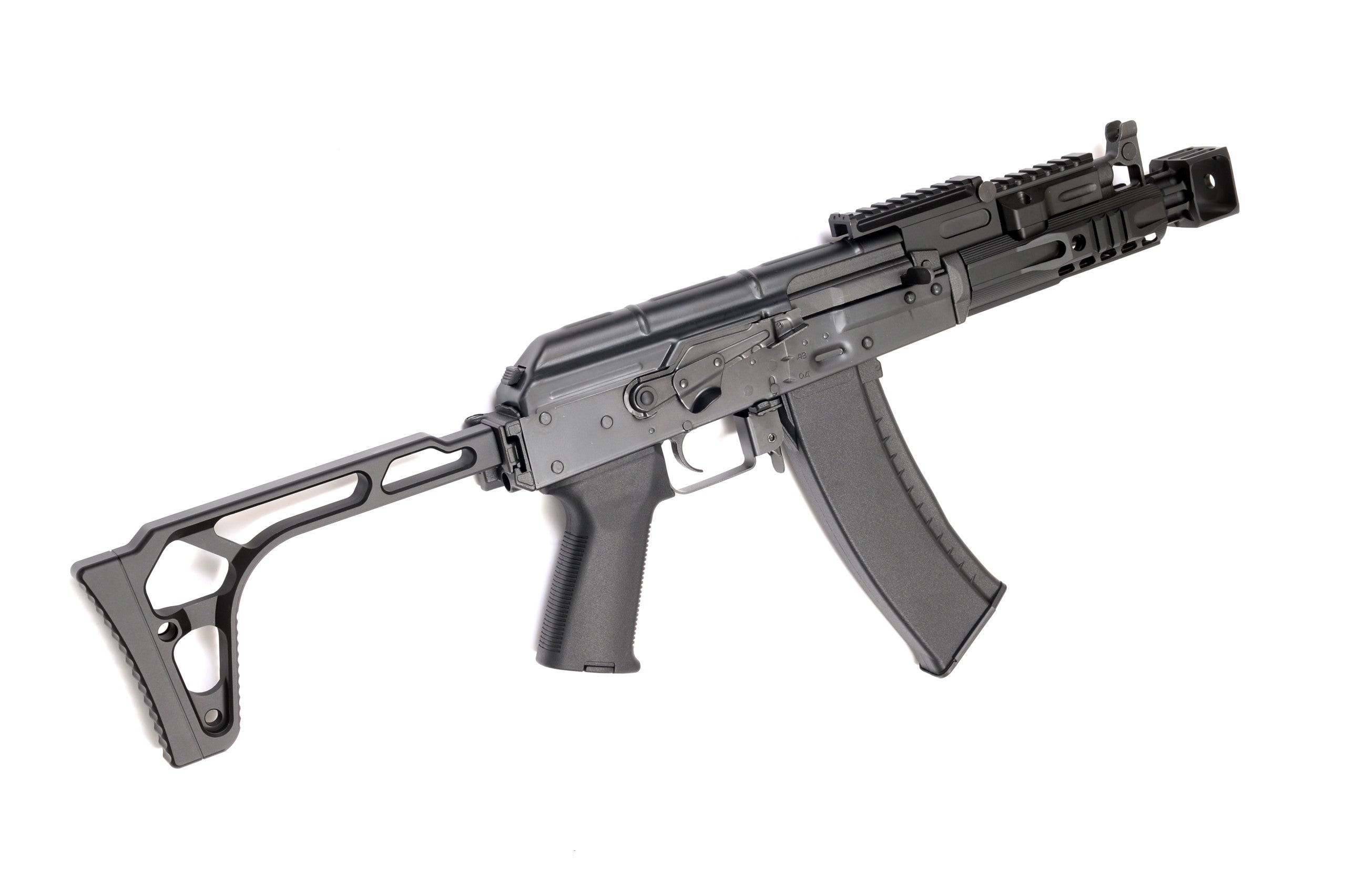

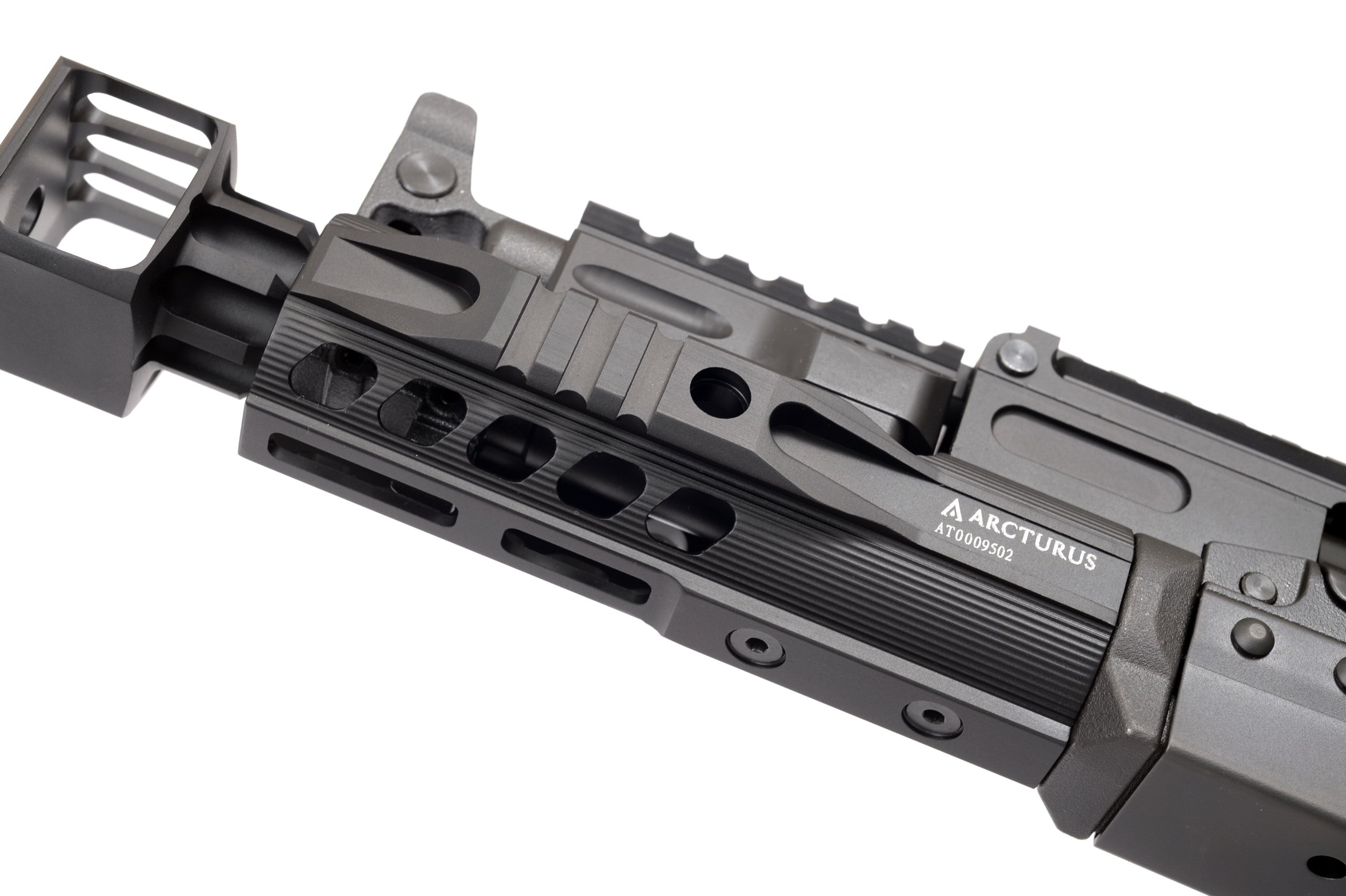

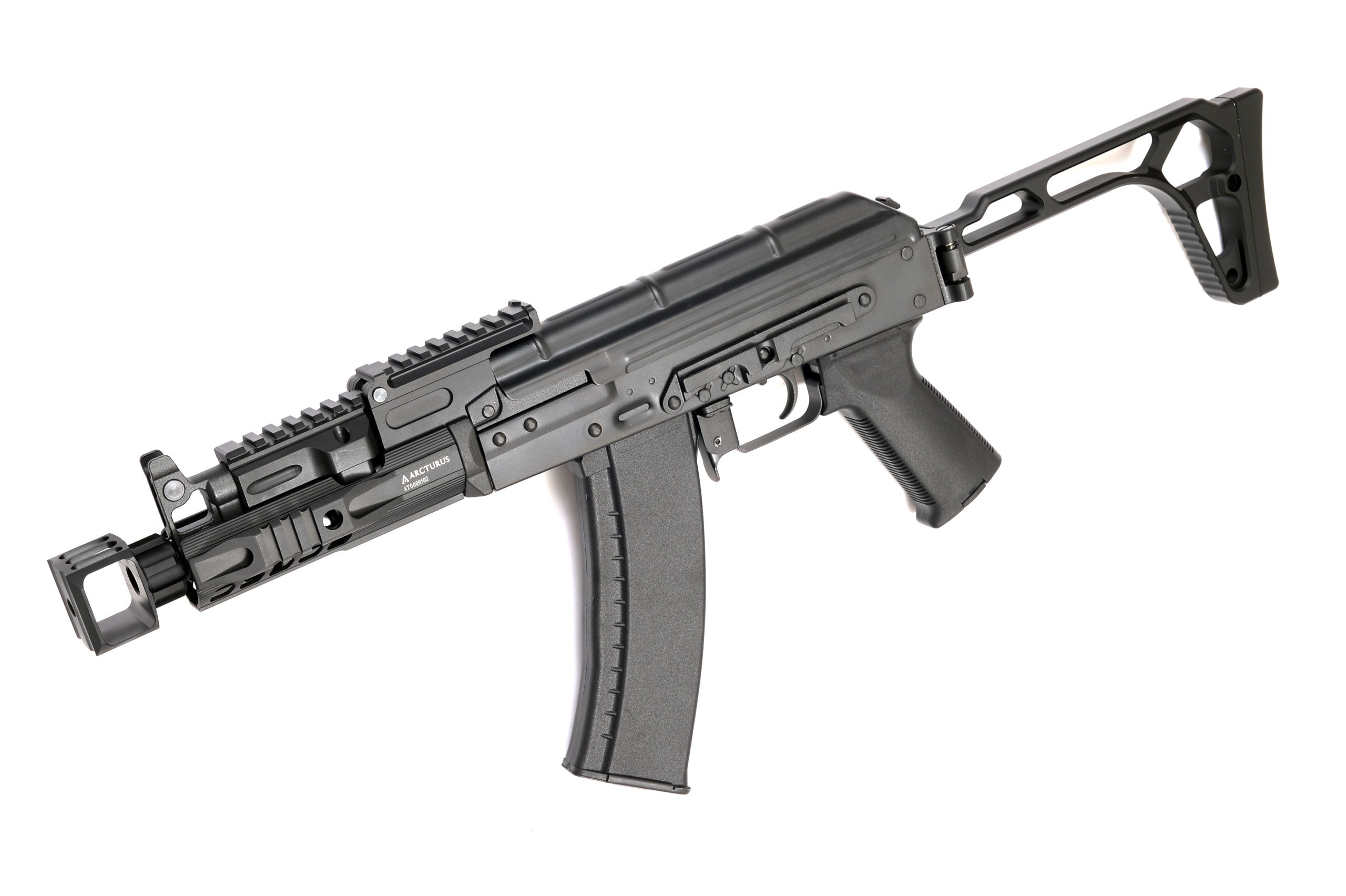

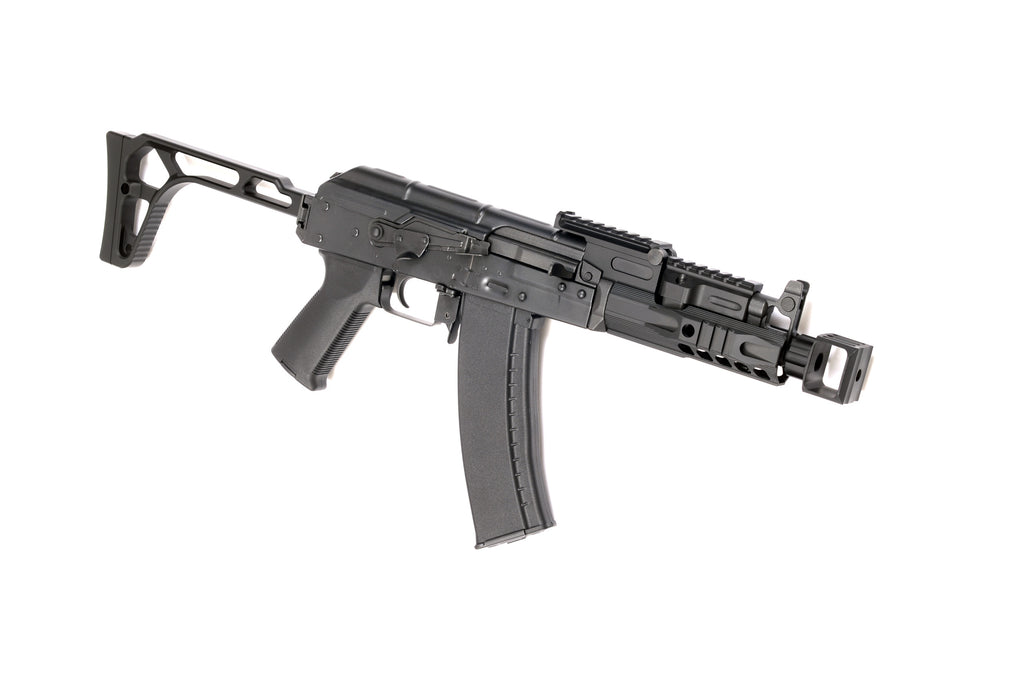

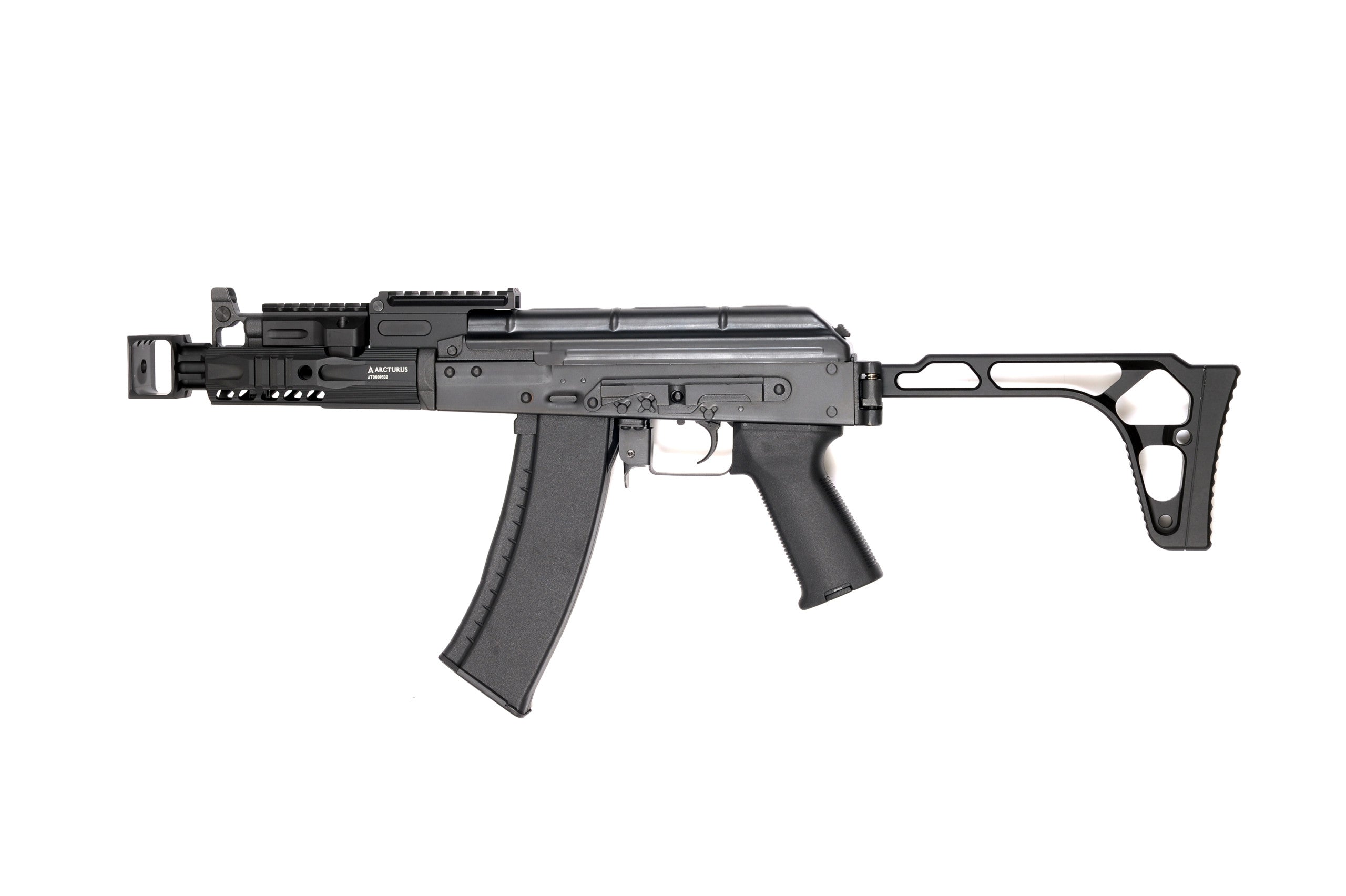

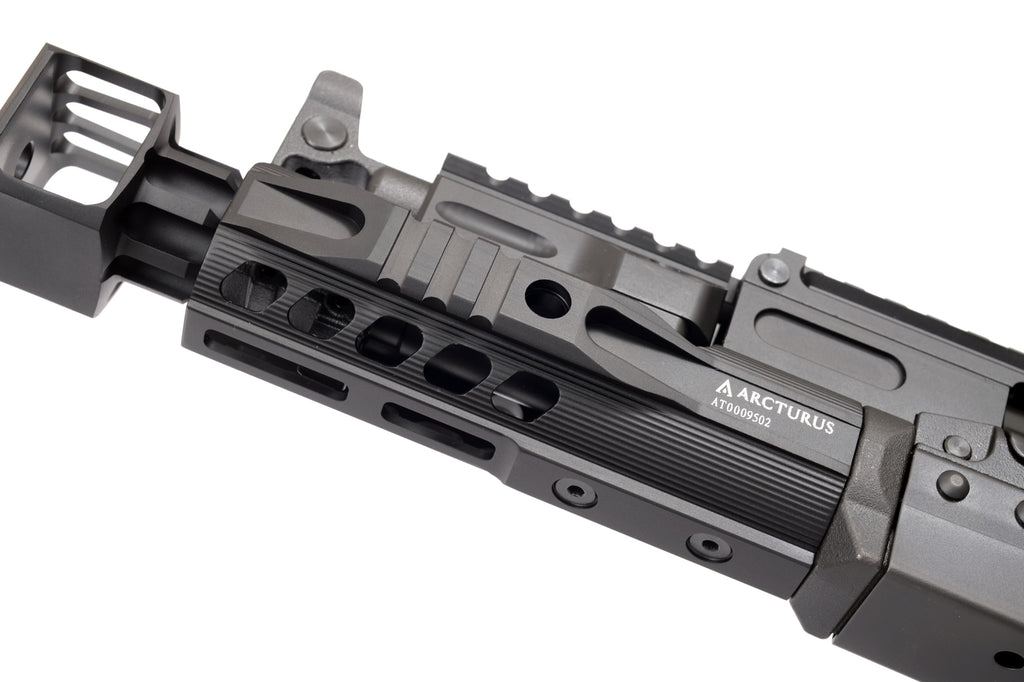

ARCTURUS AK74U Custom AEG electric gun is an extremely compact and modern AK series airsoft rifle. The gun features a short barrel, an eye catching muzzle brake, and a compact folding stock. The front end includes an aluminum M-LOK and RIS compatible handguard. The top and side surfaces of the handguard feature standard picatinny/RIS rails for attaching sights or grips. On the left side of the receiver, you will find an AK style side mount for Russian type optics or accessory rails. The stock can be folded for easier transport or for use in very confined spaces.
The internal mechanism is equipped with a durable version 3 compatible gearbox featuring a quick spring change system. This allows spring swaps without fully disassembling the gearbox. The gun uses a T plug (Deans) connector as standard.

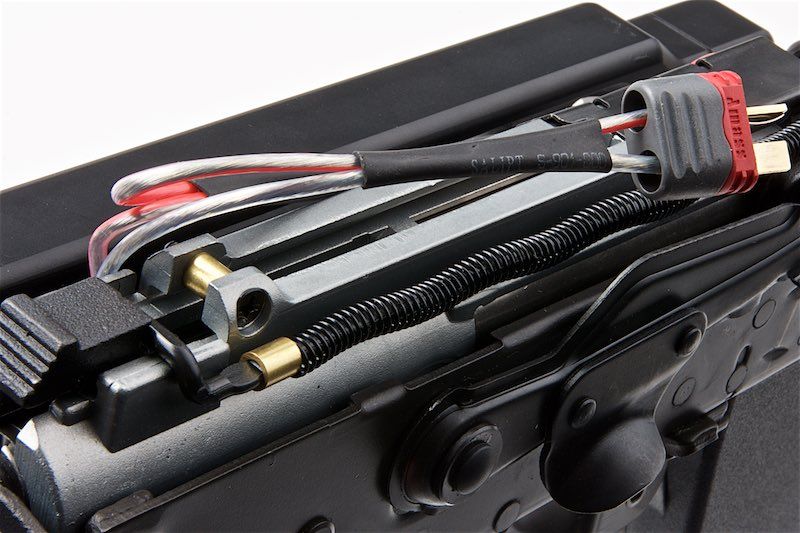

The battery compartment is located under the dust cover and fits AK style stick batteries or, for example, a Titan Power 7.4V stick battery.
External parts
Most external components on Arcturus AK series rifles are made of metal. Notably, Arcturus manufactures its airsoft guns using techniques similar to their real firearm counterparts. For example, the receiver, dust cover, safety selector, magazine release latch, and trigger guard are made from cold stamped steel sheet, just like on the real weapon. The flash hider, outer barrel, and other small components are also metal.
All these metal parts are protected against corrosion using an industrial coating process. However, drying and oiling the steel parts when necessary is recommended to maintain their condition.
Manufacturer product code: AT AK06
Package includes
- ARCTURUS AK74U Custom AEG electric gun (AT AK06)
- Two magazines
- 1 variable cap magazine (capacity adjustable between 30 and 130 rounds)
- 1 hi cap magazine (320 rounds)
Technical specifications
- Receiver material: Steel receiver, polymer parts made from fiber reinforced plastic
- Handguard: M LOK compatible rail system, 138.7 mm long
- Length: 510 or 710 mm
- Weight: 3300 g
- Outer barrel length: 183.4 mm
- Inner barrel length: 250 mm
- Inner barrel diameter: 6.02 mm (+- 0.01 mm)
- Muzzle velocity: approx. 120 m/s with 0.20 g BB (+- 10 percent)
- Internals
- Gearbox: Version 3
- Gears: 18:1 steel gears
- Bearings: Hybrid setup with 4 bushings and 2 ball bearings
- Spring guide: Steel and POM construction
- Cylinder: CNC machined steel
- Piston: Steel rack (MIM) piston with fiber reinforced polymer body
- Piston head: Ball bearing type
- Hop up: Rotary style hop up unit
- Rate of fire (rounds per second)
- With 7.4V battery: 9 RPS
- With 11.1V battery: 16 RPS
- Quick spring change: Yes (QRS2)
- Spring de tensioning mechanism: Included
- Fire modes: Safe, semi, full auto
- Connector: T plug (Deans compatible)
- Compatible battery type: 7.4V or 11.1V LiPo / Li ion
