Description

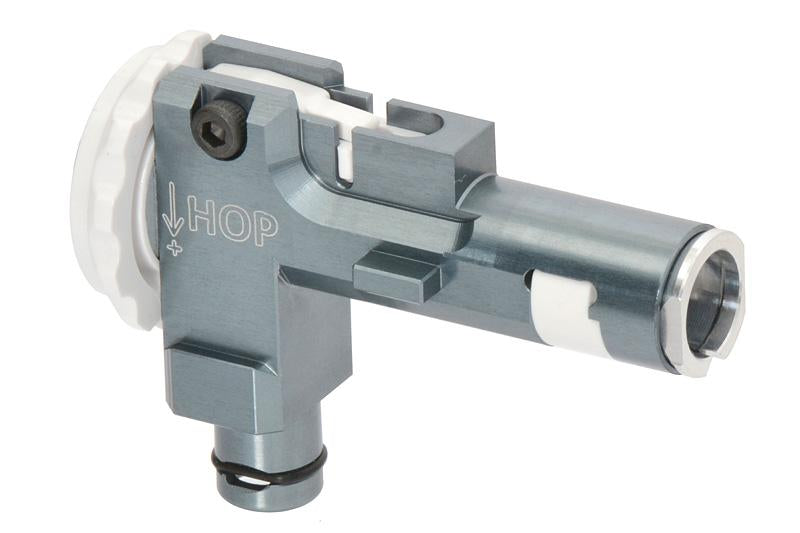

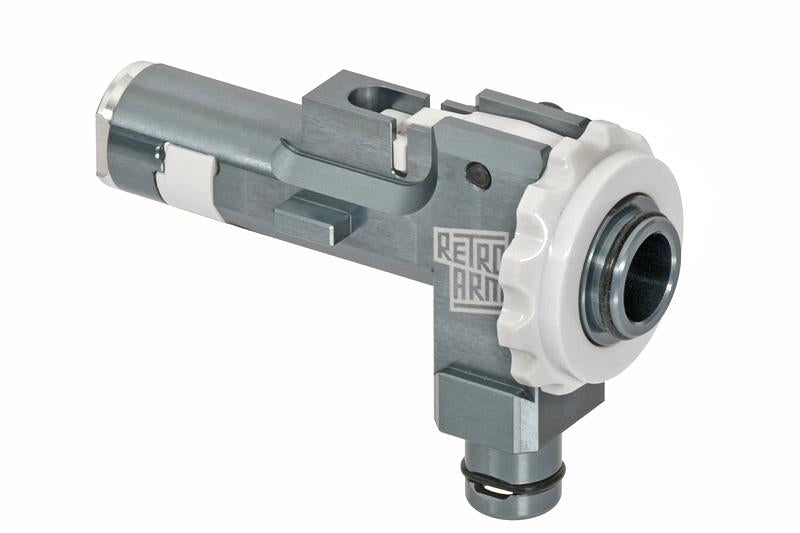

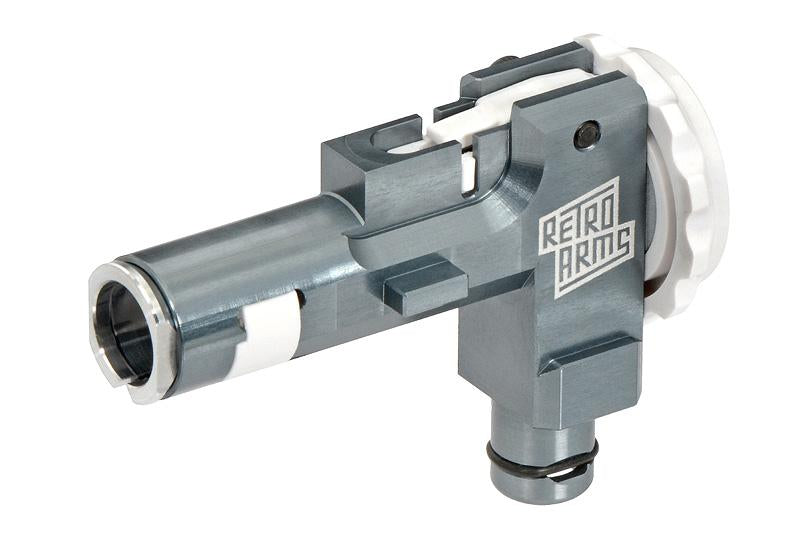

Retro Arms CNC Hop-Up Chamber AR15 BASIC
The Retro Arms CNC Hop-Up Chamber AR15 BASIC is a precision-machined upgrade chamber for AR15/M4 AEGs, designed for players who want a solid, reliable and consistent hop-up system without unnecessary adjustment features. Its EN AW 7075 aluminium construction, barrel-centering collet nut and revised internal dimensions make it a strong foundation for both straightforward upgrades and accuracy-focused builds.
The BASIC model focuses on the features that matter most in a conventional AEG hop-up setup: secure inner barrel positioning, consistent BB feeding and broad compatibility with commonly used AEG hop-up buckings. The current version has revised main and feeding shaft dimensions to further improve feeding reliability and bucking compatibility.
Secure inner barrel positioning
Instead of a conventional centering ring, the chamber uses a collet nut at the front. Tightening the nut centres the inner barrel and secures it firmly inside the chamber, helping reduce unwanted barrel movement and providing a more stable platform for consistent shooting.
The collet system can accommodate inner barrels with slightly different outer diameters, typically approximately 8.4-8.5 mm. When tightening the nut, the inner barrel should be held in position so that it does not rotate together with the nut.
Reliable feeding and BB retention
The feeding tube includes an O-ring that helps keep unfired BBs inside the chamber when the magazine is removed. This prevents the usual loose BBs from simply falling out during a magazine change.
Retro Arms has also revised the internal dimensions of the current BASIC chamber to improve compatibility with most AEG hop-up buckings and to support more reliable and consistent feeding.
Simple and tuning-friendly BASIC design
The BASIC version deliberately avoids the additional adjustable feeding components found on the more advanced Retro Arms PRO and ULTRA chambers. This makes it a practical choice for builds where the goal is a precise, robust hop-up chamber that can be installed and adjusted without adding unnecessary complexity.
The chamber is also R-hop ready, making it suitable as a base for more accuracy-focused hop-up configurations if the build is upgraded further later.
Compatibility
- Designed for AR15/M4-type AEG platforms
- Compatible with most AEG hop-up buckings
- Suitable for inner barrels with an outer diameter of approximately 8.4-8.5 mm
- R-hop ready
- Compatible with suitable Retro Arms V2 gearbox configurations
Compatibility note: The current AR15 BASIC chamber differs in shape from the older UNI version and is not intended for older Retro Arms CNC Split Gearbox V2 models with an integrated UNI hop-up chamber.
Features
- CNC-machined EN AW 7075 aluminium construction
- Anodized surface

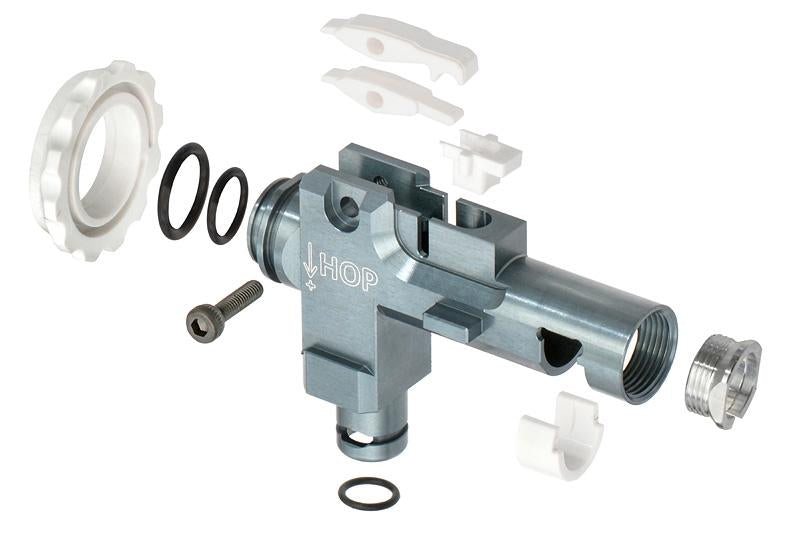

- Collet nut for centering and securing the inner barrel
- Revised main and feeding shaft dimensions
- O-ring in the feeding tube helps retain BBs during magazine changes
- Broad compatibility with AEG hop-up buckings
- R-hop ready
- Simple BASIC design without additional feeding-height adjustments
Technical specifications
- Manufacturer: Retro Arms
- Product type: AEG hop-up chamber
- Platform: AR15 / M4
- Version: BASIC
- Material: EN AW 7075 aluminium
- Surface treatment: anodized
- Typical compatible inner barrel outer diameter: approximately 8.4-8.5 mm
- Weight: approximately 18 g
- Product number: 6388
- EAN: 8596308063882
