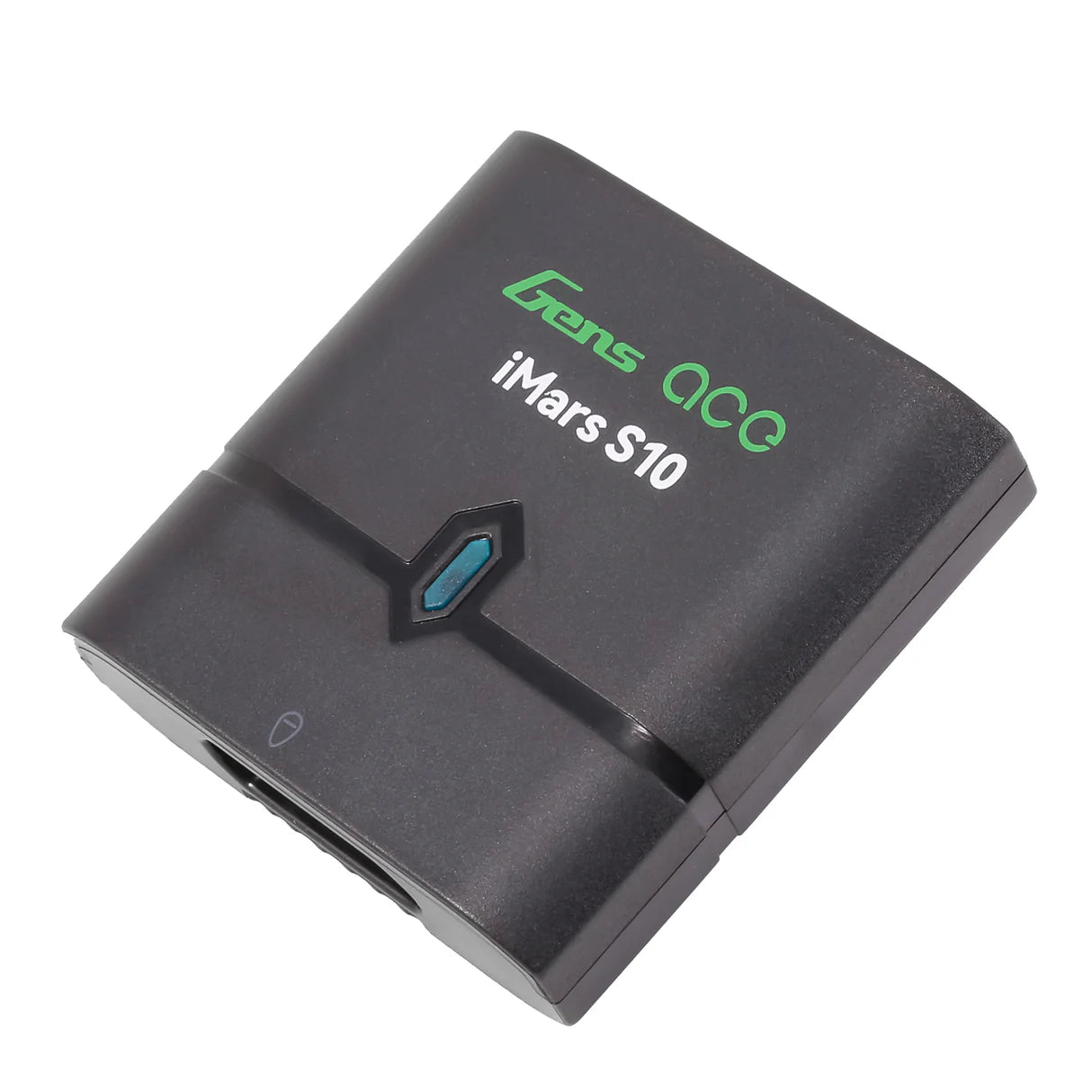

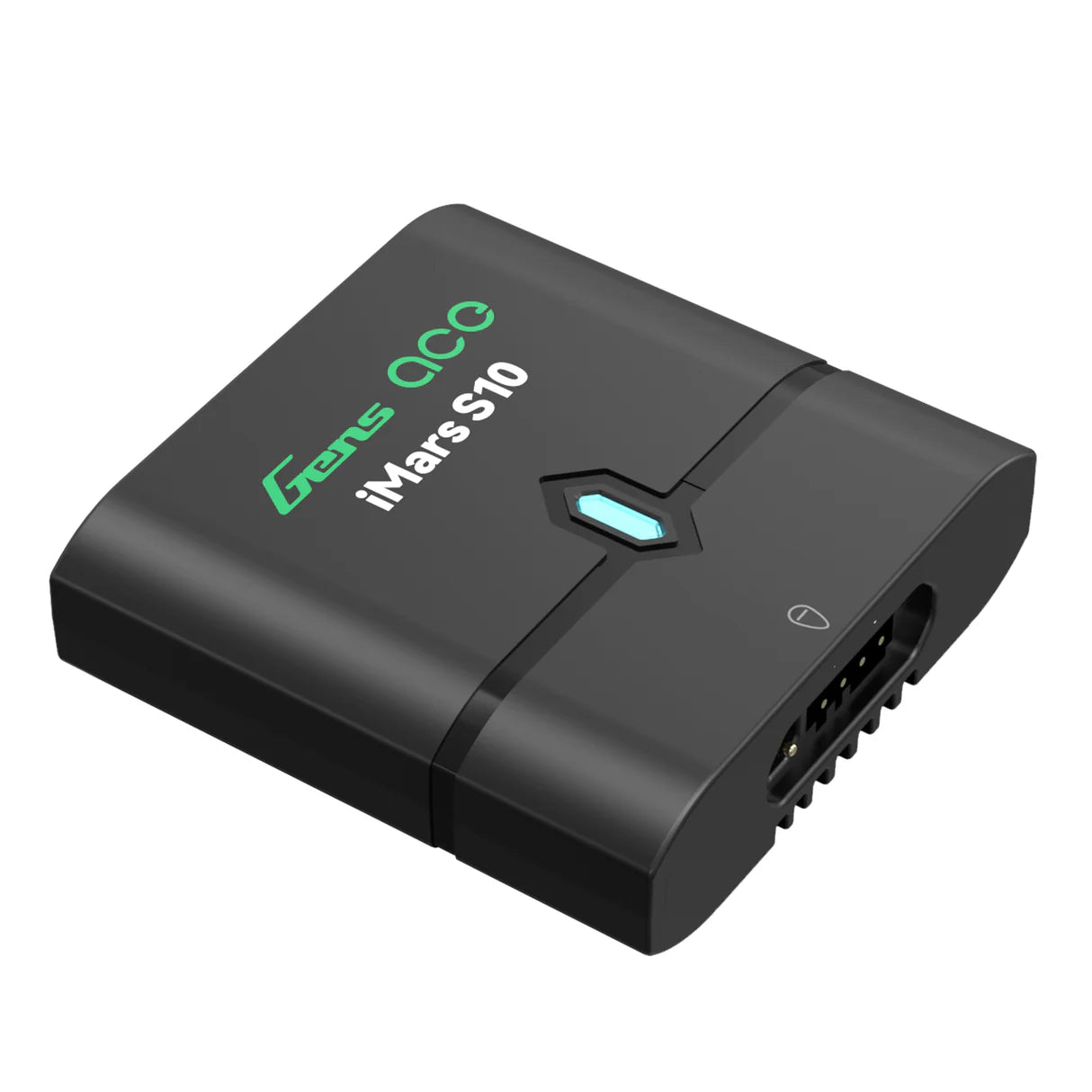

Gens Ace iMars S10 G-Tech LiPo / Li-Ion charger

The Gens Ace iMars S10 G-Tech Portable Charger is the latest addition to the G-Tech Eco series and is designed specifically for charging G-Tech batteries. It is also compatible with a wide range of other non-G-Tech batteries commonly used in airsoft. This multi-purpose charger is especially suitable for low-capacity batteries (250 mAh - approx. 3000 mAh). The supported voltage range covers the most common airsoft battery voltages: 7.4V, 7.7V, 11.1V and 11.4V, making it an excellent choice for different types of batteries.

The Gens ace iMars S10 G-Tech airsoft charger (USB-C) requires a separate power supply. Almost any USB-C phone charger will work as a power source. Although Gens Ace chargers are sometimes picky on the power supply, so we do recommend minimum 60W power supply with USB-C to USB-C cable (using USB-A to USB-C sometimes will result in errors)

Smart charging with G-Tech connector

The charger has a G-Tech connector and an intelligent system that automatically detects whether it is a High Voltage battery. After detection, the charger selects the best charging mode for optimal and safe charging of the battery. If a regular battery without a G-Tech connector is used, the charger uses the default protocol, where each cell is charged to 4.2 volts. This ensures safe and even charging for both regular and HV cells.

Recommended uses:

• Airsoft Gun Batteries
• Small capacity batteries in the RC hobby

Download the user manual

Product information:

• Maximum charging power : 10W

• Charging current : max. 0.8A

• Charging connector : balanced connector only

• Supply voltage : 5V

• Output voltage : 5-13.05V

• Max. input current : DC 2A

• Balancing current : max. 80 mA

• Input ports : BC1.2 / SDP / CDP / DCP / Apple 5V/2.4A

• (not compatible with 5V/1A power supplies)

• Wrong battery voltage alarm : yes

• Output reverse polarity protection and alarm : yes

• Balance connector reverse polarity protection and alarm : yes

• Supported battery types : LiPo 2-3S

• Operating temperature : 0-45°C

• Storage temperature : -20°C - +60°C

• Dimensions : 51 × 51 × 14 mm

• Weight : approx. 23 g

Explanation of the indicator lights:
